High Throughput Mass Determination with Table-Top Robotic Systems

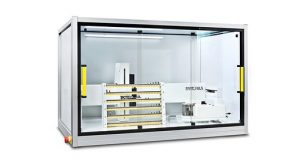

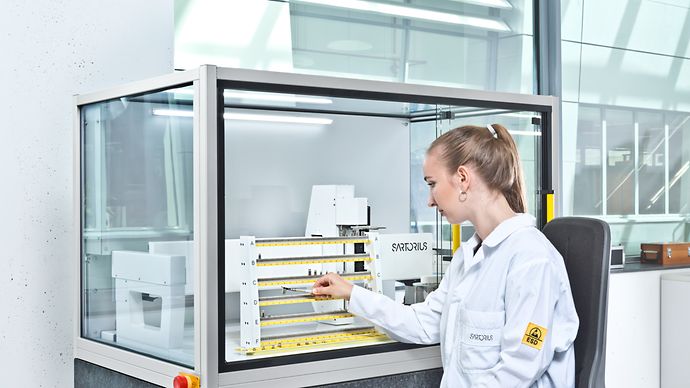

The CCR-Compact Robotic Systems offer table-top sized automated solutions for mass determination or dissemination processes up to 10 g maximal capacity.
With 120 magazine positions, these systems offer a walkaway solution allowing continuous processing of the measurements overnight or over the weekend. Designed for simultaneous management of reference and test weights the Sartorius dual robotic arm system with the patented multi and single weight handlers speeds up the processes with its most efficient motion sequences and handles the weights with highest precision and consistency. The climate sensors integrated into the weighing chamber additionally contribute to the reliability of the results.
Automated weight handling at the range of 1mg to 10g not only eliminate the error rates of manual handling but significantly increase productivity which consequently leads to cost-savings long term.
Your Benefits
- 120 magazine positions allow overnight and weekend processing
- Dual Robotic Arm Technology guarantees the most efficient motion sequences available on the market
- Table-Top design saves precious laboratory space
- Robustness assure the best repeatability values
- Build-in Climate Sensor in the weighing cells further support measurement accuracy
- 3 Models fulfill your workflow requirements
For more information about Sartorius Mass Comparators, please call us at 513-777-1525 to speak with an associate or submit the Alpha Liberty online contact form and an associate will get back to you at their earliest convenience.
Manual Cubis® MCM mass comparators combine metrological expertise and integrated OIML R 111-1 workflows. A choice of 14 models is available with maximum capacities of 6 g to 64 kg and readabilities of 0.1 μg to 10 mg. Models with a draft shield are supplied standard with a built-in climate module equipped with sensors for temperature, humidity and air pressure (external climate module for models without a draft shield). All results are displayed with their measurement uncertainties.
Cubis MCM, Mass Comparator, group, view from right
Key Features
- Cubis® MCM color touch screen for fast and simple configuration of parameters and workflows
- Complete mass standard laboratory in a single unit
- Integrated climate sensors for recording all data relevant for determining measurement uncertainty
- Integrated workflow control for efficient anderror-free mass comparison
- Fast measurement cycles according to the ABA, ABBA, AB1…BnA
- Sensor-equipped climate module integrated into the draft shield for recording the temperature, humidity and air pressure
- Integrated calibration workflows for ABA, ABBA, AB1…BnA cycles to ensure efficient, error-free mass comparison.
- Fully integrated function for determining the measurement uncertainty in accordance with OIML and ASTM recommendation
- Filters for optimal adaptation of the mass comparator to ambient conditions
- Monolithic weighing technology
- For display and evaluation, complete electronics and power supply separated from the weighing system to prevent heat from affecting the results
- All MCM mass comparators featuring eccentric (off-center) load compensation for easy loading of weights without automatic centering
- Additional applications for density determination, statistics and individual identifiers are integrated as standard programs
- Built-in SD card slot for storage and transfer of all data and settings
- Graphical level indicator for interactive user guidance during leveling
- Easy logging of reference weight data
- Continuous weighing range display: any weight between 0 g and the maximum capacity can be displayed
- USB, RS-232C and Ethernet interface ports to integrate the mass comparator into networks or to enable it to communicate with external software via third-party protocols, standardized communication protocols or Web services
For more information about Sartorius Mass Comparators, please call us at 513-777-1525 to speak with an associate or submit the Alpha Liberty online contact form and an associate will get back to you at their earliest convenience.
